- 0.04mm steps
- Rapid Trigger
- 4KHz
- Key scanning
- 8KHz, wired
- Polling rate
- 65% ANSI, 68 keys
- Layout
Magnetic

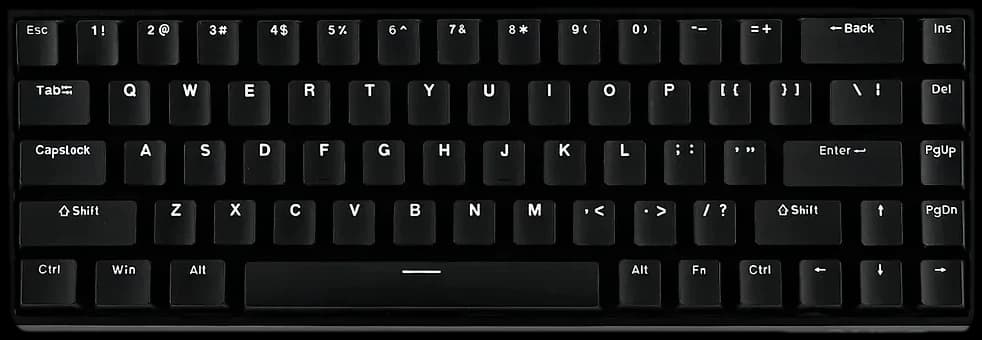

AULA WIN 68HESTANDARD EDITION BLACK + BLACK KEYCAPS WIRED KEYBOARD
BARCODE 6978080504067
Switches: Graywood magnetic (Hall Effect), 32gf actuation, 50gf bottom-out
Wired 68-key magnetic board with Graywood switches, 0.04mm Rapid Trigger steps, 4KHz key scanning and 8KHz polling.
- RGB lighting
- 68%
- Wired
- 8KHz
In stock
Standard edition, black case, black keycaps, Greywood magnetic switches, wired
- Cash on Delivery nationwide
- Genuine AULA product · 1-year official AULA warranty
- Setup help and driver files on WhatsApp

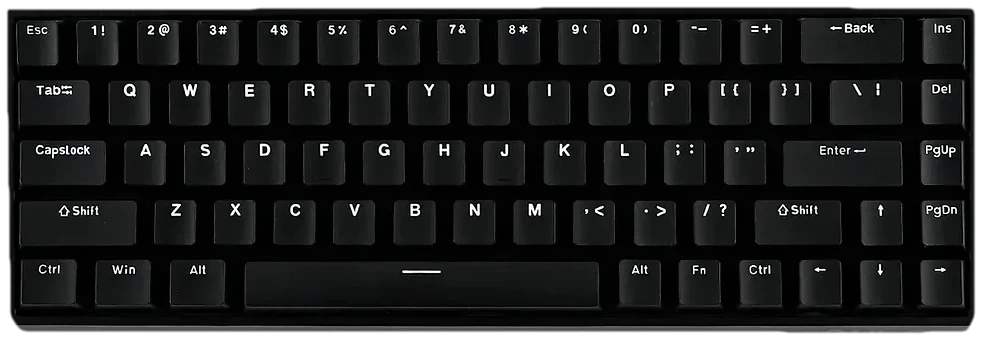

AULA WIN 68HE in Standard Black
Standard black.
Wired 68-key magnetic board with Graywood switches, 0.04mm Rapid Trigger steps, 4KHz key scanning and 8KHz polling.
Inside the WIN 68HE
WIN 68HE: layout, feel, switches and connection
01 / 04 · LAYOUT
65% ANSI, 68 keys
65% ANSI, 68 keys layout, magnetic (HE) switches, hot-swappable so you can change the switches later.
- Layout: 65% ANSI, 68 keys. 65% ANSI, 68 keys layout, magnetic (HE) switches, hot-swappable so you can change the switches later.
- Switches: Graywood magnetic (Hall Effect), 32gf actuation, 50gf bottom-out. Graywood magnetic (Hall Effect), 32gf actuation, 50gf bottom-out switches with 0.04mm steps Rapid Trigger.
- Connect: Wired. Wired.
- Light: RGB. RGB lighting.
Figures worth knowing
- 0.04mm
- Rapid Trigger
- 4KHz
- Key scanning
- 8KHz
- Polling rate
As listed by AULA for the WIN 68HE.
65% ANSI, 68 keys layout.Magnetic (HE) switches.Wired.
AULA WIN 68HE
Standard Black
The WIN 68HE, sketched
- 0.04 mm steps Rapid Trigger
- Hot-swappable switches
- RGB lighting
- Wired connection
Fires on depth, resets on lift
A magnet in each switch lets the board measure travel instead of waiting for a metal contact. That is what makes adjustable actuation and Rapid Trigger possible on magnetic keyboards.
- Press past the fire line and the key turns on
- Lift a little and it turns off straight away
- Press again without going back to the top
Illustration: not a measurement of this keyboard
Press past the fire line to activate
Precision in every detail
The figures AULA prints for the WIN 68HE, marked on the drawing.
65% ANSI, 68 keys
Layout
0.04 mm steps
Rapid Trigger
8 KHz, wired
Polling rate
4 KHz
Key scanning
Wired
Connection
Hot-swap
Switches
Magnetic
Switch type
Product details
Everything about the WIN 68HE Standard Black
Wired 68-key magnetic board with Graywood switches, 0.04mm Rapid Trigger steps, 4KHz key scanning and 8KHz polling.
- 65% ANSI, 68 keys
- Layout
- Wired
- Connectivity
- 0.04mm steps
- Rapid Trigger
- 8KHz, wired
- Polling rate
Features
Magnetic switches
Rapid Trigger: reset the instant you let go
Magnetic (Hall-effect) switches measure how far a key is pressed instead of closing a metal contact. The board fires and resets from the direction of your finger, not from a fixed point, so quick taps and counter-strafes register faster. You choose the actuation point yourself.
Polling rate
8000Hz polling: a report every 0.125 ms
At 8,000 reports per second the device talks to your PC eight times more often than a standard 1000Hz one. Cursor movement and key presses arrive in finer steps, which you notice most at high sensitivity and high refresh rates.
Make it yours
Hot-swappable switches
Pull a switch out and push another in, no soldering needed. Try different feels, replace a worn switch or tune each row to taste, whenever you like.
Lighting
RGB that shows through
Per-key and side RGB lighting makes the legends easy to read in a dark room and lets you match the board to the rest of your desk.
Specifications
- Switch tech
- Magnetic (HE)
- Connectivity
- Wired
- Hot-swappable
- Yes
- Layout
- 65% ANSI, 68 keys
- Switches
- Graywood magnetic (Hall Effect), 32gf actuation, 50gf bottom-out
- Actuation
- 0.1 to 3.4mm, adjustable
- Rapid Trigger
- 0.04mm steps
- Key scanning
- 4KHz
- Polling rate
- 8KHz, wired
- Size
- 321 x 109 x 37.6mm
- Weight
- About 700g
- Warranty
- 1-year official AULA warranty
- Catalog reference
- AULA catalog, page 20
Want to be sure before you buy?
Specifications come from the AULA catalog, our stock list and matching retailer listings of the same model. Message us and we will confirm any detail for you.
FAQ
Questions about the WIN 68HE Standard Black
Quick answers about the product, ordering, delivery and warranty.
Still have a question?
Message us and a real person replies with an answer for this exact model.
Ask on WhatsAppIs the WIN 68HE Standard Black wireless?
The catalog lists Wired for this model. Ask us on WhatsApp if you need wireless and we will suggest the closest match.
Can I change the switches?
Yes. The switches are hot-swappable, so you can change them without soldering.
What is Rapid Trigger?
On magnetic keyboards the key fires and resets based on how your finger moves rather than at one fixed point. Quick, repeated presses register faster, which is why these boards are popular in competitive shooters.
What is the price?
Prices move with stock, so we confirm today's price for this exact model and colour before anything is sent. Message us on WhatsApp or place an order and we call you with the total.
How do I order?
Add it to your cart and go to checkout with your name, mobile number and address. We call or message you to confirm the price and delivery, and you pay when it arrives. You can follow your order on the Track order page, or simply message us the model name on WhatsApp.
How long does delivery take, and what does it cost?
We deliver across Pakistan with Cash on Delivery, so you pay the courier when the parcel reaches you. Delivery time and any delivery charge depend on your city, and we confirm both with you before dispatch.
Does it come with a warranty?
Keyboards, mice and headsets come with a 1-year official AULA warranty. The RGB mouse pad has a 1-month warranty and other mouse pads have none. For a claim, send us your order number and the serial number from the product or box. You can also check a serial number first on our warranty check page.
What if it arrives damaged or does not work?
Check the parcel when it arrives. If anything is damaged or not working, message us on WhatsApp with your order details and a photo or short video, and we arrange the next step with you.
Is this a genuine AULA product?
Yes. We supply original AULA stock, and you can send us the serial number to verify it.
Do you provide drivers or software?
Message us your model on WhatsApp and we send the right configuration software and firmware.
